The clues for Yamhill

( by Hans de Vries )



64 bit processing using twin  32 bit cores





Three clues for Yamhill seem to provide substantial prove.



The industry has speculated a year now on the existence of 64 bit extensions to the x86 ISA in Intel's future 90 nm processor codenamed Prescott. We could show in our March 6 article that Prescott contains two instead of one 32 bit integer execution cores. The question arises for the purpose of such a second core?  In fact there are many different possibilities: Use it to run a separate trace to improve hyper threading. Use it to check the results of the first core (IBM has a processor that does just this). And of course, Yamhill, is just one of them. searching for clues we started looking at the highest resolution die-plot of the Pentium 4 we could find and try if we could make some sense of all these little artificial colored rectangles and lines. (The photo shows 5 micrometer details) We made progress, studied code optimization manuals for clues, Went through all the presentations, then looked at Pentium 4 related patents from known P4 architects, made more progress, gained confidence and started to write an article about the Integer execution core with the die photo as the visual base. This long article will be published in the near future. For now we have stumbled on a number of clues that seem to provide substantial prove for the existence of Yamhill. If (or when) it will be enabled is a different question. They might even call it the Pentium 6.... (Tejas = 7, Nehalem = 8)



(  Edit, March 29,2003:   The rumors are that it will be enabled in Potomac.

The MP version for systems with more than 2 processors in late 2004 )



And then now the clues, They are handled in more in detail later in the article.

Clue 1:  The second Integer Unit has no AGU's (Fast double clocked Address Generator Units)

This unit provides the address bits 32 and higher. We will show that there is no need to provide these bits very fast

in the NetBurst Architecture with its replay capabilities. nor do we need all bits 32 through 63  A virtual address size of 40 or 48 bits would be sufficient for the time being.  (It's 48 bits in the first implementation of the Hammer family)

Clue 2:   The second Integer Unit register file has a smaller size,  1.30 x 0.64 mm versus 1.30 x 0.71 mm

The (renamed) register file of the Pentium 4 has 128 entries for 32 bit data plus 6 bit status flags. We could show that Prescott has two 256 entry register files. The width of the two is equal meaning that they have the same number of entries. The height of the second one is however less, indicating that is has less data bits per entry. We presume that it has all its 32 data bits but that the 6 status flags are lacking. A 64 bit processor needs only one set of status flags per 64 bit word.  This clue also implies that the second core can not be used to run an independent 32 bit thread.

Clue 3:   The data caches have been shifted in order to balance a critical path in 64 bit processing

The first core has to provide the address bits for the data caches of both cores. Most critical in Northwood are bits 6..11 that select one of  32 cache lines in a 2k page and bits 12..16 that are used to predict which of the 4 ways contains the cache line  ( 4 x 2kByte = 8 kByte cache size ).  These paths should be as short as possible. Going from one core to another introduces a long path for this critical signal. However, it turns out that the path to both caches are equal in length. They managed to do this by shifting both caches upwards. (see second image below)

Pentium 5 improvements over Pentium 4



A list of improvements we found on the die until now.

 Only two of them are officially disclosed by Intel.

( so it's all unofficial )







Specifications

and Enabled

Features



Pentium 4



Northwood

Prestonia (DP)

Gallatin (MP)

Pentium 5



Prescott          (Q4-03)

Nocona (DP)   (Q4-03)

Potomac (MP) (H2-04)

Data Width

32 bit

Prescott      32 bit

Nocona       32 bit

Potomac      64 bit

Logical Processors

(number of threads)

Northwood:  1,2

Prestonia:      2

Gallatin:        2

Prescott:   2

Nocona:   2?

Potomac:  4

L1 Data Cache

8 kByte

Prescott  16 kByte

Nocona  32  16 kByte

Potomac  32 kByte

Instruction Trace Cache

12 k uOps

16 k uOps

Trace Cache Bandwidth

3 uOps/cycle

4 uOps/cycle

L2 Unified Cache

512 kByte

1024 kByte

Instructions in Flight

126

 256   128

Integer Register File

128 x 32 bit

256 x 64 bit

Floating Point Register File 128 x 128 bit 256 x 128 bit
Load Buffer 48 entries 96 entries
Store Buffer 24 entries 48 entries

(updated May 7, 2003)



The Image below will be featured in a coming article that will zoom in on all the individual units and discuss them in detail

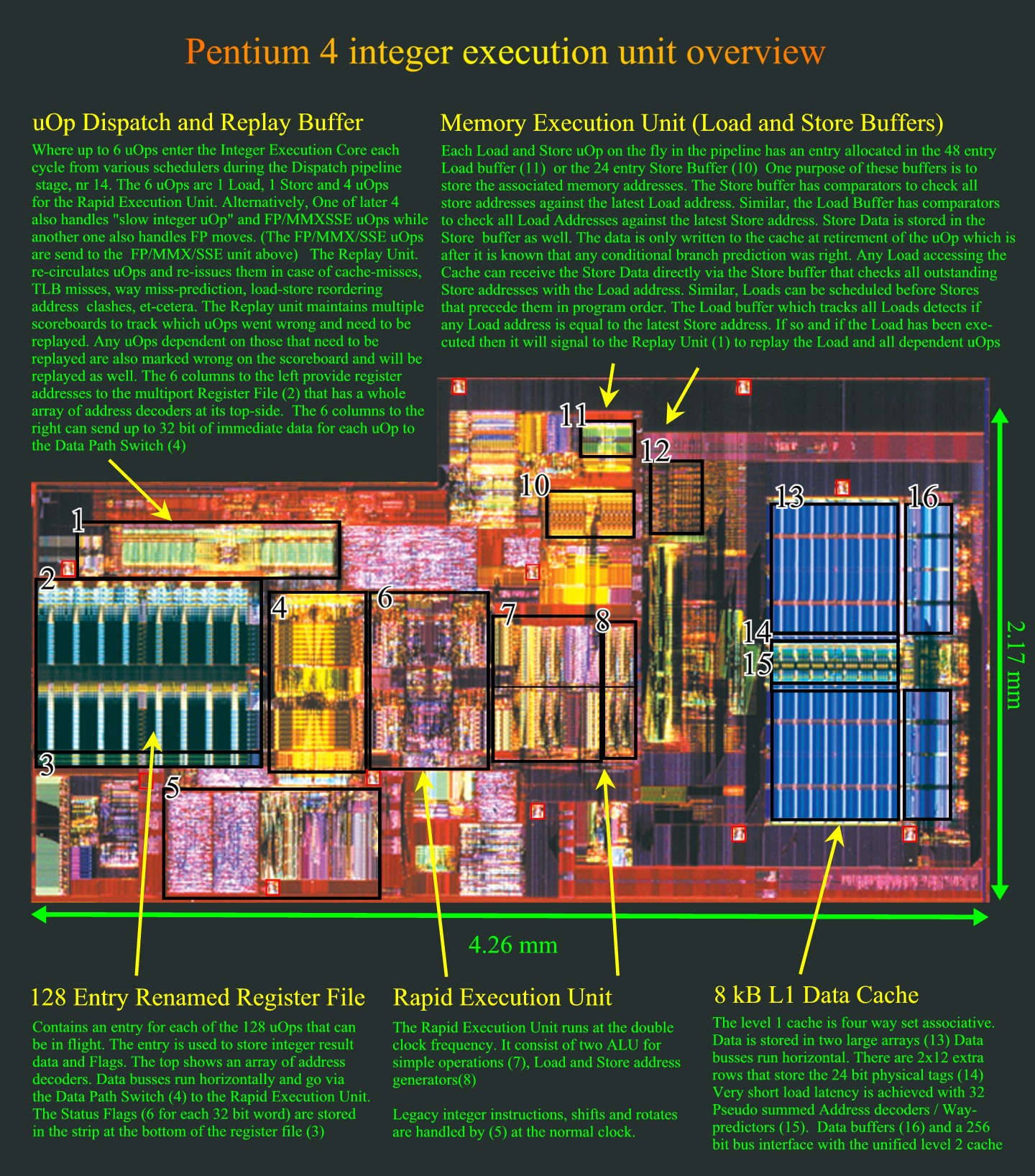

Must be very interesting for all the assembly level programmers to see how all their instructions fly around through the architecture. You can click here for a higher resolution version

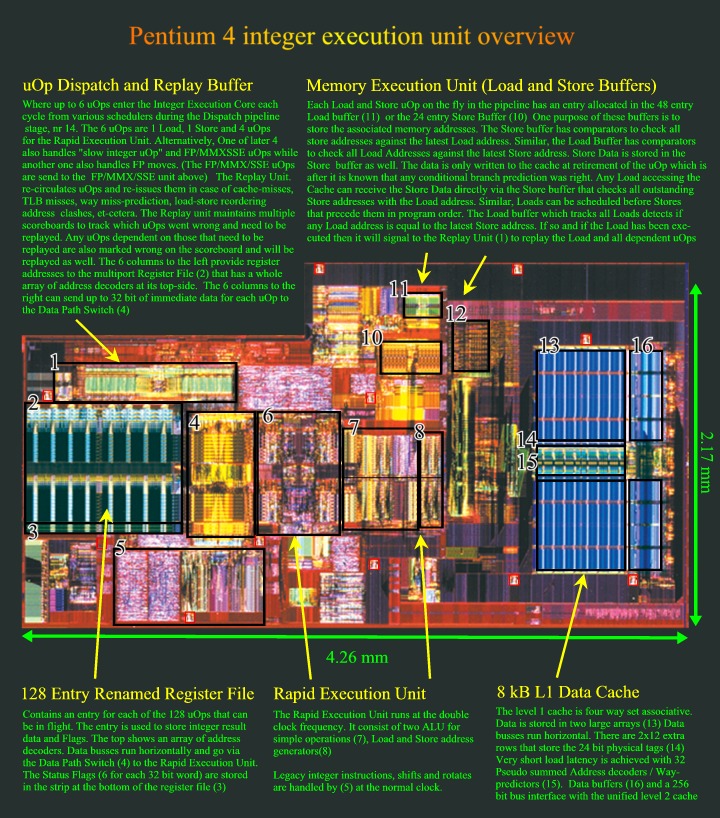

The next image below visualizes all three clues:



1) The missing AGU's in the second core.

2) The second register file with less bits per entry.

3) The balanced timing critical load address to cache paths.





The high address bits 32 and higher don't need to be calculated fast



I said that I would explain that, however that will become much too technical for now. Lets put things in a table, say for instance for a Northwood Memory Execution Unit and larger then 32 bit addressing, see below.  Now, all actions that need the full address must be designed in such a way that they are not timing critical.  The probably did manage to do that. Prescott has however a different cache size and thus a different table. Have a look at David Sager's patents to find out more about the stuff below.



load/

store



Action



address

bit used

CSA/XOR

used to by-

pass AGU

Optimization Rule

load

write load address

in load buffer

full

address

no



load

Index cache-line in

each of the four ways

6..11

yes

2k Data Cache aliasing, max four with same tag

load

Way prediction

12..15

yes

64k Data Cache aliasing, only one with same tag

load

Read Store Data

from Store Buffer

2..13

yes?

16k store-forwarding aliasing, only one with same bits 2..13 in the store buffer

load

Check Store Buffer

Address 14..31

14:31

no

4 Gbyte aliassing. Must take store buffer address bits 32 and higher along to check later when full load address ready and force a replay if needed

load

Check Cache Hierarchy Hit

full

address

no

General cache stuff

store

write store address

in store buffer

full

address

no



store

Check against the

load buffer addresses

2:16?

no?

Incorrect match only produces unnecessary replays. Less bits = more replays

store

Store Data in

Cache Hierarchy

full

address

no





Why does Intel say that the cache is 16kByte while there is 32 kByte on the die??



Good question.  The answer has been written years ago in the CPUID table!



66h:

     8kB  first level data cache, 4-way set associative, 64 byte cache line

67h:    16kB  first level data cache, 4-way set associative, 64 byte cache line
68h:    32kB  first level data cache, 4-way set associative, 64 byte cache line



How can a 32 kB L1 cache be 4-way set associative with 4 kB page memory management!..    Don't you need at least 8 ways?  (8 x 4 =32)  Aren't we missing a selection bit here.  Ahaa...  They must be using a Thread ID bit so 2 threads get half of the cache (4 ways) and the other 2 get the other 4 ways.  So Nocona will have a 32 kByte L1 Data Cache!

And the other way around:  It proves that Nocona will handle 4 threads!



Regards, Hans
